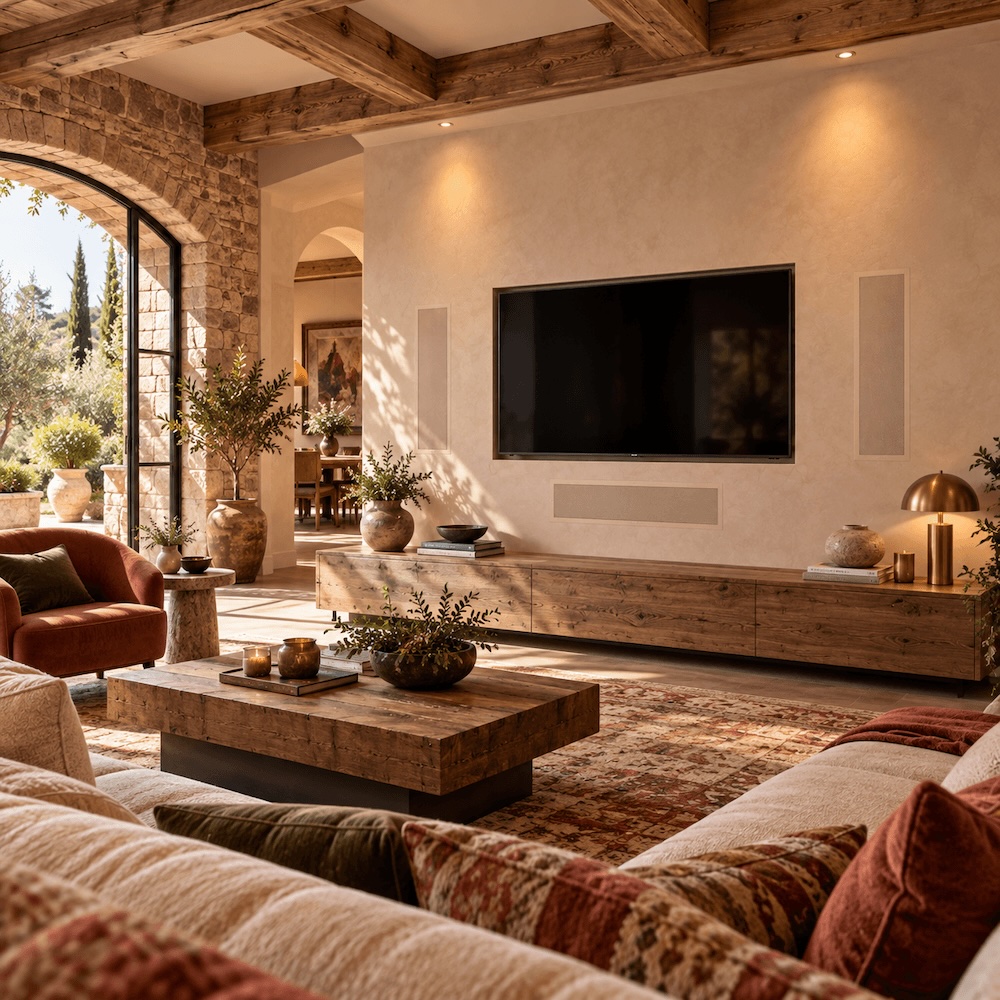

KR513 in-wall LCR speaker for home cinema
KR513 is the in-wall LCR speaker from the Luna™ Collection, designed for high-performance home cinema and hi-fi systems that blend seamlessly into the architecture.
The 2-way system, featuring four 130 mm woofers and a 32 mm dome tweeter, delivers high sound pressure levels, wide coverage and excellent speech intelligibility. Flush installation allows KR513 to serve as the left, centre or right channel while maintaining a discreet visual presence.
Key technical specifications
Do you have a project in mind?
We can help you understand whether this product is suitable for your space and how to integrate it effectively, both acoustically and aesthetically.
An LCR system built into the wall power and intelligibility for home cinema and hi-fi

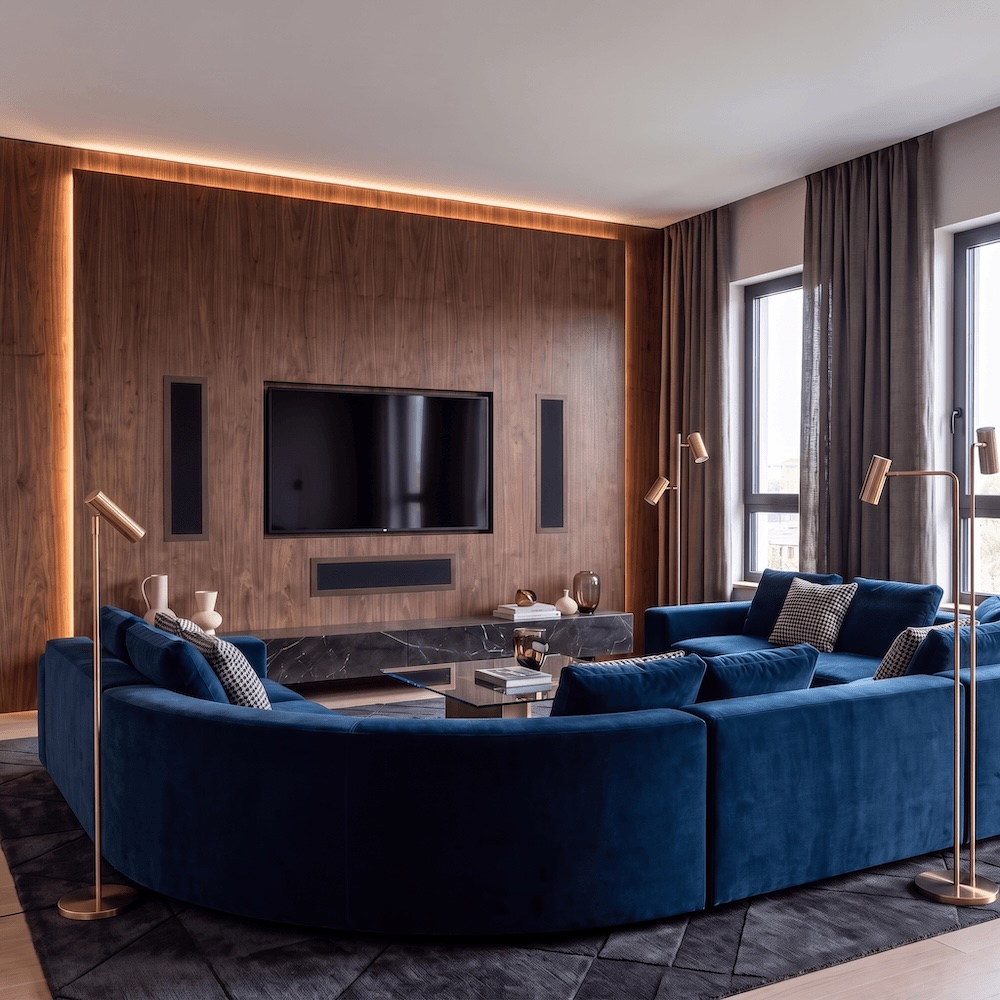

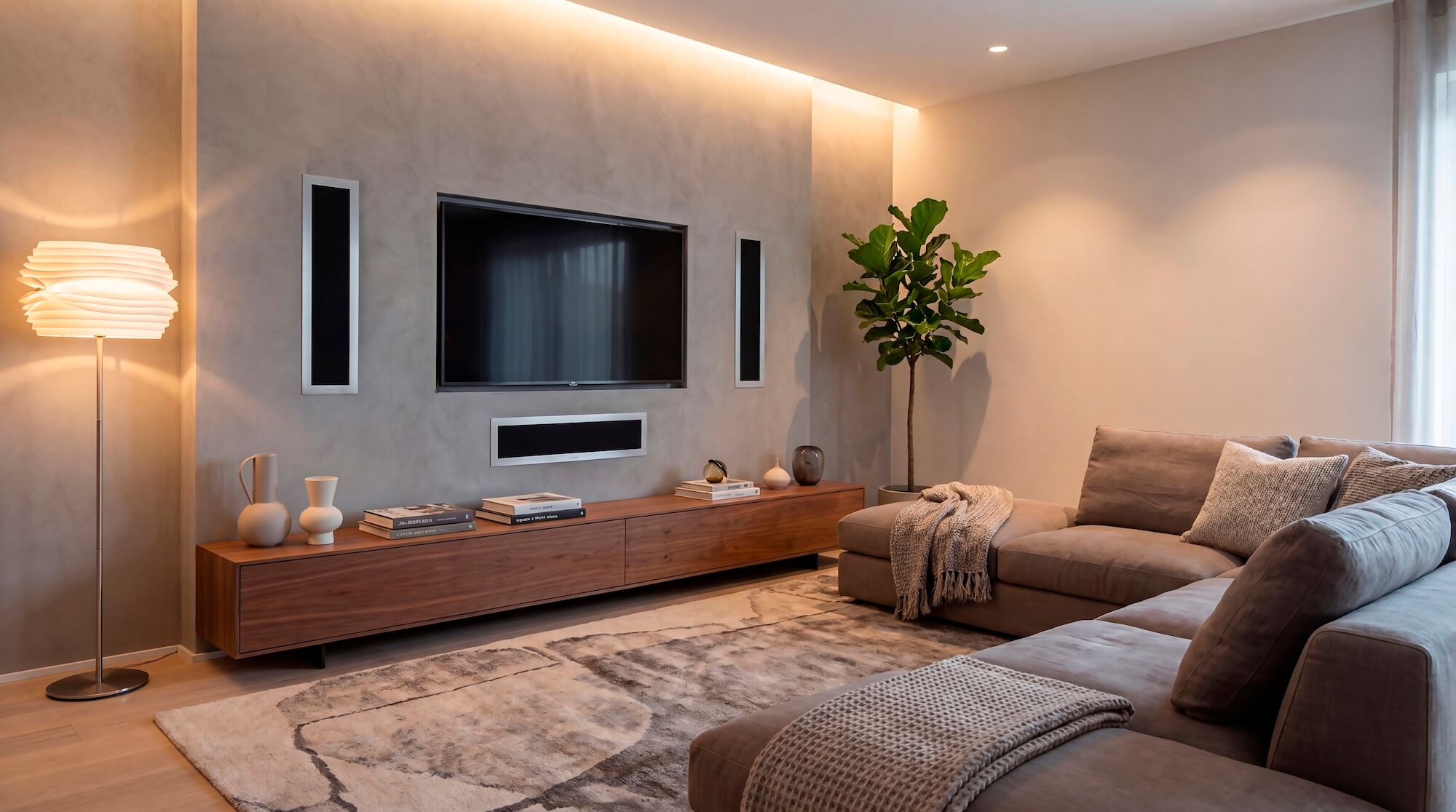

KR513 is designed to provide the front channels of a high-performance home cinema system. It can be installed vertically as the left or right channel, or horizontally as the centre channel.
The arrangement of the four woofers and tweeter ensures wide, controlled dispersion, making it particularly suitable for reproducing dialogue, music and cinematic effects with clarity and dynamics.
- LCR configuration for the front channels
- Vertical or horizontal installation
- Excellent speech intelligibility
- Suitable for home cinema and hi-fi systems
Performance for an immersive listening experience powerful dynamics, high sound pressure levels and wide coverage
The four 130 mm woofers with treated cellulose cones and the 32 mm treated silk dome tweeter deliver a full, balanced and detailed sound across the frequency range.
With a sensitivity of 92.5 dB and a calculated maximum SPL of 129 dB, KR513 can fill large rooms with sound, maintaining clarity and control even during the most dynamic passages.
- Power: 300 W AES / 600 W continuous
- Frequency response: 70 Hz – 20 kHz (-3 dB) with dedicated preset
- Sensitivity: 92.5 dB (2.83 V / 1 m)
- Calculated maximum SPL: 129 dB @ 1 m
- Nominal coverage: over 120° between 1 and 4 kHz
Flush with the wall, with no compromise on design magnetic covers and customisable finishes

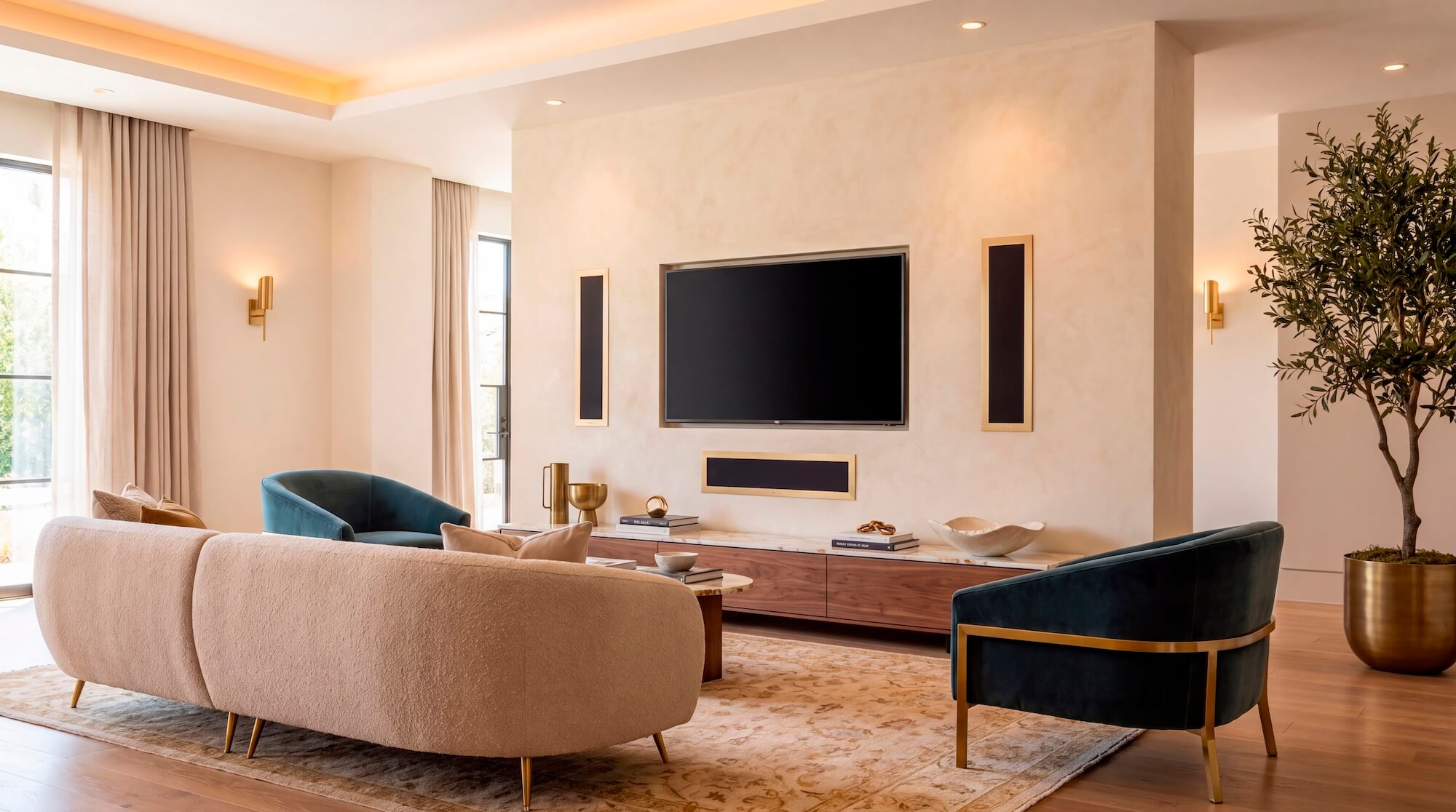

Flush installation minimises the speaker’s visual presence and integrates the audio system into the room’s architectural design, while delivering the performance required for home cinema.

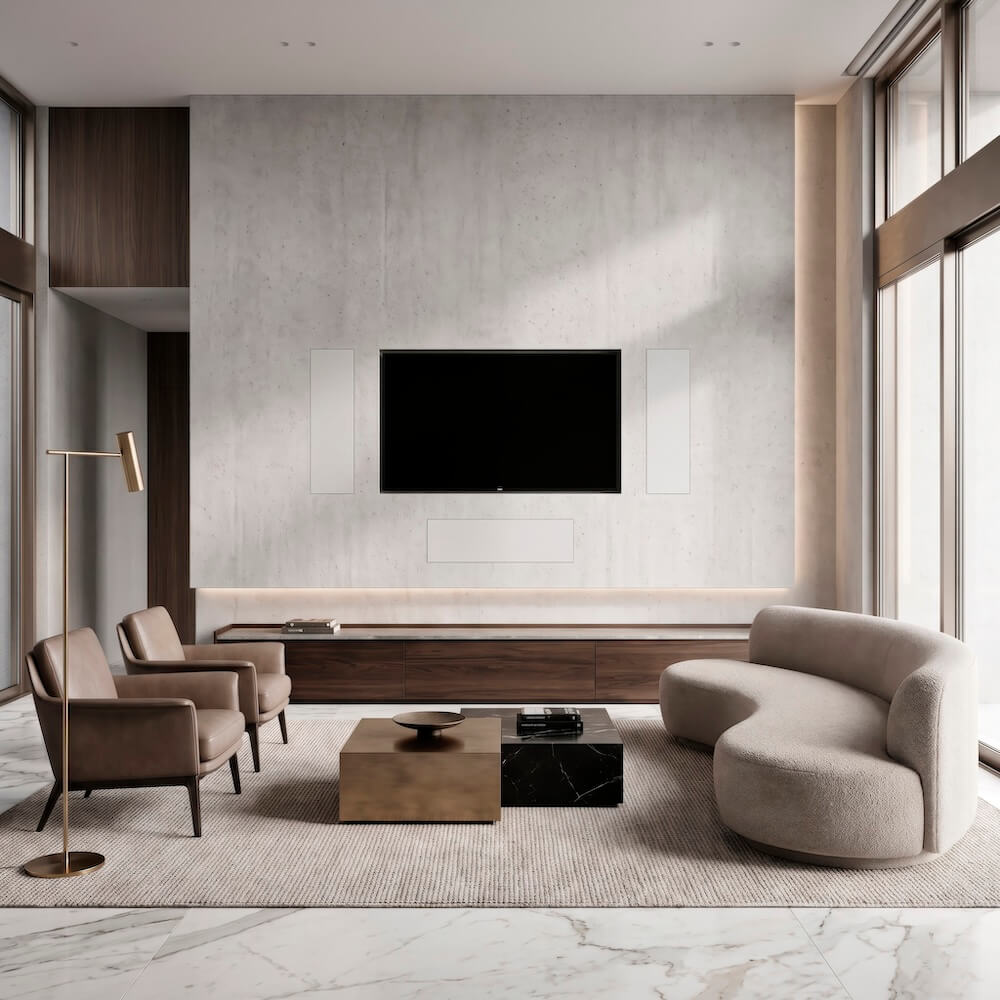

The cover is secured with neodymium magnets and is available with a micro-perforated grille or a fabric covering. Metal surfaces can be painted white, finished in RAL/NCS colours or customised with electroplated finishes.

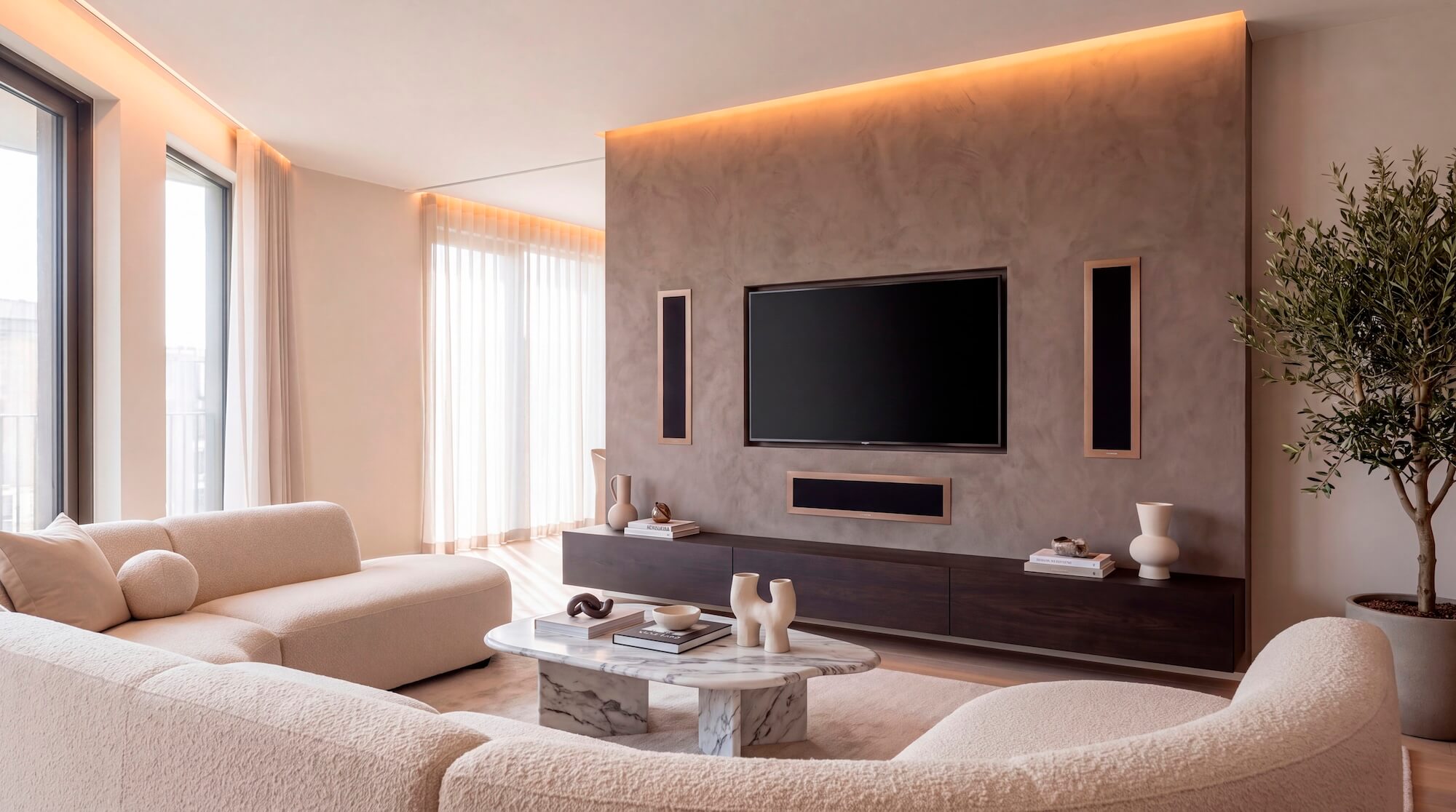

- Installation perfectly flush with the wall
- Cover secured with neodymium magnets
- Paintable micro-perforated grille
- RAL/NCS colours, electroplated finishes or fabric
Installation in masonry or plasterboard wall and ceiling integration
KR513 is designed for recessed installation in indoor walls or ceilings. The datasheet details dedicated solutions for masonry and plasterboard, with a minimum wall thickness of 90 mm.
The push terminals on the crossover and speaker accept cables from 18 AWG to 11 AWG. A 60 Hz high-pass filter with a slope of 48 dB per octave is recommended to protect the system. Dedicated Garvan presets are also available.
- Installation: in-wall / in-ceiling
- Compatible construction types: masonry and plasterboard
- Minimum wall depth: 90 mm
- Supported cable gauge: 18–11 AWG
- Recommended high-pass filter: 60 Hz, 48 dB/octave
Installing KR513 the steps for a flush installation
Watch the installation video for the Luna™ Collection in-wall speakers: a visual guide to the installation steps and the seamless result within the wall. For instructions specific to KR513, please refer to the product datasheet.
- Preparing for recessed installation
- Fitting and connecting the speaker
- Attaching the magnetic cover
- A finish perfectly flush with the wall
